MCP server

The Subframe MCP server gives external coding agents direct access to your Subframe projects. The agent can read, design, and delete pages, components, and snippets, screenshot pages and components, export them as images, read prototypes, write and delete design documents, edit the theme, and search the Subframe docs.

Viewers get a read-only MCP server. Read, screenshot, export, and search tools work, but tools that design or edit require an editor seat.

Installing the MCP server and Agent skills

Claude Code
Claude Desktop
Cursor
Codex
Other clients

Install the Subframe plugin

claude plugin marketplace add https://github.com/SubframeApp/subframe && claude plugin install subframe@subframe

The Subframe plugin for Claude Code sets up the MCP server and agent skills in one install.In the Claude desktop app’s Code tab, click + → Add plugins to install from marketplaces you’ve added. The terminal and desktop app share settings, so an install in one appears in the other.

Keep the plugin up to date

Claude Code turns auto-update off by default for third-party marketplaces, including Subframe. Run claude plugin update subframe@subframe to update manually, or run /plugin and select Marketplaces → subframe → Enable auto-update.

Verify installation

Run /mcp to check that the Subframe MCP server is connected, then try asking Claude Code to use Subframe.If you’ve also connected Subframe as a connector on claude.ai, Claude Code uses that connection and the plugin doesn’t add a second Subframe server.

Share with your team (optional)

Add the following to .claude/settings.json and commit it, so team members are prompted to install the Subframe plugin:

.claude/settings.json

{
  "enabledPlugins": {
    "subframe@subframe": true
  },
  "extraKnownMarketplaces": {
    "subframe": {
      "source": {
        "source": "github",
        "repo": "SubframeApp/subframe"
      }
    }
  }
}

Add the Subframe connector

Go to Customize > Connectors
Click and select Add custom connector
Set the name to Subframe
For Remote MCP Server URL, paste the following URL:
https://mcp.subframe.com/mcp
Click Add

Authenticate

Find the Subframe connector in your connectors list and click Connect. Follow the instructions on the Subframe website to complete authentication.

To install the plugin with the MCP server and skills, import https://github.com/SubframeApp/subframe into a Cursor team marketplace ↗, then open Customize, find Subframe, and click Install. Repository imports require an eligible Teams or Enterprise marketplace. The plugin will also be available in the Cursor Marketplace once listed. If you already use the Subframe plugin in Claude Code, Cursor can load it too when Include third-party Plugins, Skills, and other configs is on in Cursor Settings → Rules, Skills, Subagents.To install the MCP server and skills separately, follow these steps:

Install the MCP server

Add the Subframe MCP server to Cursor. You’ll be prompted to authenticate via OAuth.

Add Subframe MCP server to Cursor ↗

Troubleshooting: Manual installation

If the install link doesn’t work, make the following changes to ~/.cursor/mcp.json.

~/.cursor/mcp.json

{
  "mcpServers": {
    "subframe": {
      "url": "https://mcp.subframe.com/mcp"
    }
  }
}

Cursor will handle OAuth authentication automatically when you first connect.

Install agent skills

Agent skills are guided workflows that teach Cursor how to best use Subframe. Install them with:

npx skills add https://github.com/SubframeApp/subframe --skill '*' -g --agent cursor --yes

Verify installation

Check that the Subframe MCP server has successfully connected in Cursor Settings > MCP, then try asking Cursor to use Subframe.

Install the Subframe plugin to add the MCP server and agent skills:

codex plugin marketplace add SubframeApp/subframe
codex plugin add subframe@subframe

Then start a new Codex session and run /mcp login subframe to sign in to Subframe.After adding the marketplace with the CLI, restart the ChatGPT desktop app, open Plugins, and install Subframe from the subframe marketplace.Codex refreshes git marketplaces on startup, so plugin updates arrive automatically. To update immediately, run codex plugin marketplace upgrade subframe and start a new session.Codex picks skills automatically, or you can invoke one explicitly with $subframe:design, $subframe:develop, or $subframe:import.The Codex IDE extension doesn’t support plugins. If you use the IDE extension, install the MCP server and skills separately with these steps:

Install the MCP server

Run the following commands to add the Subframe MCP server and authenticate:

codex mcp add subframe --url https://mcp.subframe.com/mcp && codex mcp login subframe

Troubleshooting: Manual installation

If the commands above don’t work, add the following to ~/.codex/config.toml:

~/.codex/config.toml

[mcp_servers.subframe]
url = "https://mcp.subframe.com/mcp"

Then authenticate:

codex mcp login subframe

Install agent skills

Agent skills are guided workflows that teach Codex how to best use Subframe. Install them with:

npx skills add https://github.com/SubframeApp/subframe --skill '*' -g --agent codex --yes

Verify installation

Run /mcp in Codex to check that the Subframe MCP server is connected, then try asking Codex to use Subframe.

Configure the Subframe MCP Server

Configure your MCP client to connect to the Subframe MCP server:

URL: https://mcp.subframe.com/mcp
Transport: HTTP
Authentication: OAuth (your client will handle the authentication flow)

Install agent skills (optional)

If your client supports the Agent Skills standard, install the Subframe skills with:

npx skills add https://github.com/SubframeApp/subframe --skill '*' --agent '*' --yes

Verify installation

Restart your MCP client, then check that the Subframe MCP server has successfully connected and try asking your coding agent to use Subframe.

Using Agent skills

Agent skills are guided workflows that teach your agent how to use Subframe. The MCP server gives the agent access to Subframe, while the skills teach it what to do with that access. Subframe provides three skills:

/subframe:design designs and edits pages, components, snippets, design documents, and themes in Subframe
/subframe:develop sets up Subframe in your codebase, implements designs, and adds the required application logic
/subframe:import brings an existing codebase’s or website’s design system into Subframe, including tokens, fonts, icons, and components

Agent skills use the Agent Skills open standard ↗.

Keeping Agent skills up to date

For plugin updates and auto-update settings, follow the instructions in your client’s tab above. If you installed skills separately with npx skills add, check for updates with:

npx skills check

Install available updates with:

npx skills update

Using the MCP server

Once configured, your coding agent can access Subframe automatically when you prompt or paste an MCP link to a page from the Export tab. You can get the MCP link for any design by either:

Copying the link from the browser address bar

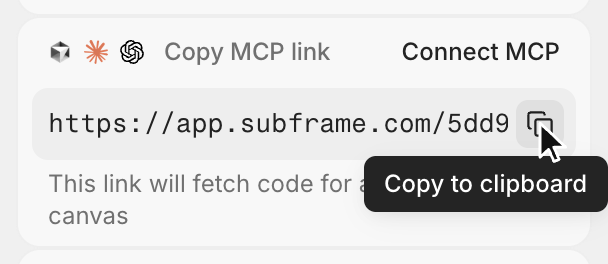

Copying the link under Copy MCP link in the Export tab in Subframe

The MCP link card in the Export tab with the Copy MCP link label, a Connect MCP button, and the page's MCP link

design_page, design_component, edit_component, and design_snippet generate with Subframe’s AI and use your Subframe AI credits, even if your coding agent runs on its own subscription. They don’t use credits when you run them from Agent chat with a connected Claude Code or Codex subscription.

Opening designs in chat

When the agent finishes a turn that changed your project, it calls open_subframe to show you what changed. In chat apps that support interactive apps, like Claude Desktop, a card lists the changed pages, components, snippets, canvases, design documents, or theme. Click Open to edit the design in the Subframe editor right in the chat. On a phone, or in a chat app that can’t run the editor, Open opens the design in Subframe instead. In terminals and IDEs, like Claude Code or Cursor, the agent replies with a link to each item.

Tool	Description
`open_subframe`	Show changed or requested designs, with a link to each item

Available tools

The Subframe MCP server exposes tools across several categories. Most tools take a projectId. If omitted, the sole accessible project is used; if you can access several, the tool asks for a projectId instead.

Discovery

Tool	Description
`list_projects`	List the projects you have access to
`create_project`	Create an empty project or one from the starter template
`delete_project`	Delete a project for the whole team
`generate_auth_token`	Generate a CLI auth token for a team
`get_project_info`	Get project metadata and its design documents
`search_docs`	Search the Subframe documentation
`search_inspiration`	Search a curated library of real landing pages for visual direction

An empty project has no theme or components, which suits importing designs. The starter template comes with a theme and components to build on. Free plans allow 1 project. A deleted project can’t be restored.

Pages

Tool	Description
`list_pages`	List all pages and the canvases they belong to
`get_page_info`	Get a page’s generated React and Tailwind code
`design_page`	Generate new page designs from a description
`edit_page`	Edit a page element’s content, structure, and styles
`update_node_styles`	Replace elements’ Tailwind classes while preserving content and structure
`screenshot_page`	Screenshot a page, a single element, or a breakpoint
`delete_page`	Delete a page

Components

Tool	Description
`list_components`	List all components and the folder each one is in
`get_component_info`	Get a component’s generated code and design document
`screenshot_component`	Screenshot a component’s variants and states
`design_component`	Design a new component from a description
`edit_component`	Edit a component, updating every page that uses it
`delete_component`	Delete a component or custom page layout
`list_folders`	List component folders and what each contains
`delete_folder`	Delete a component folder, optionally with its components

Snippets

Snippets are small, standalone bits of UI typically embedded inside design documents as live examples (e.g. a “Button variants” snippet showing every Button state). They live within Subframe and do not sync out.

Tool	Description
`list_snippets`	List all snippets
`get_snippet_info`	Get a snippet’s generated code
`design_snippet`	Design a new snippet from a description
`edit_snippet`	Edit a snippet element’s content, structure, and styles
`update_node_styles`	Replace elements’ Tailwind classes while preserving content and structure
`delete_snippet`	Delete a snippet and remove it from any design documents

Canvases

A canvas is a collection of related pages (e.g. “Onboarding”, “Checkout”).

Tool	Description
`list_canvases`	List all canvases
`get_canvas_info`	Get a canvas and its pages with their grid position
`delete_canvas`	Delete a canvas, optionally with the pages on it

Organizing

Tool	Description
`rename`	Rename a page, component, snippet, canvas, component folder, or theme
`move`	Move pages to another grid cell or canvas, or components into folders; a batch applies together
`duplicate`	Make an exact copy of a page, component, snippet, canvas, theme, or whole project

A duplicated canvas includes copies of its pages but not its prototype. A duplicated component stays in the same folder as the original.

Comments

Tool	Description
`list_comments`	List the comment threads on a page, a canvas, or the whole project

Open threads are returned by default. Each thread’s element id matches get_page_info’s node ids, so an agent can act on the feedback with edit_page or update_node_styles. Replying to and resolving comments happens in the Subframe editor.

Exporting images

Tool	Description
`export_image`	Export a page, an element, a component, or a snippet as a PNG, JPG, WebP, or PDF

The tool returns a download URL. In chat apps that show Subframe’s card, the image appears with a Download button. A component exports its default variant. Agents check their own work with screenshot_page and screenshot_component instead.

Prototypes

A prototype is an interactive, AI-generated running app — its own React + Vite codebase — created in the Subframe prototyping editor. The read tools below expose a prototype as a standalone, runnable Vite app: internal scaffolding is dropped and the Vite/Tailwind config plus an entrypoint are added, so the file paths and contents you get back are ready to run with npm install && npm run dev.

Tool	Description
`list_prototypes`	List all prototypes
`get_prototype_info`	Get a prototype’s metadata and file list
`read_prototype_file`	Read one file from a prototype

Design documents

Design documents are Markdown files containing product context, brand voice, design principles, component usage rules, and accessibility requirements. Project docs cover guidance shared across the project; component docs cover the use of a specific component. Use get_project_info to access project docs and get_component_info to access a component’s doc.

Tool	Description
`write_design_document`	Create or update a design document
`delete_design_document`	Delete a project doc or a component’s design doc

A component can have at most one design document. The Design Guidelines doc can’t be deleted over MCP. Snippets can be embedded as live examples with <div data-type="component-example" data-component-id="..."></div>.

Theme

Tool	Description
`list_themes`	List the project’s themes with their ids and which one is the default
`get_theme`	Get a theme as typed JSON, plus breakpoints and available fonts
`edit_theme`	Edit a theme’s colors, typography, corners, shadows, borders, and defaults with a batch of typed operations
`import_theme`	Import pasted Tailwind v4 CSS or a Tailwind v3 config into a theme
`delete_theme`	Delete a theme other than the default

A project can hold several themes that share token names but differ in values. Add a theme with duplicate (this needs the Pro plan; existing themes stay editable on any plan) and rename it with rename. The default theme cannot be deleted. Theme edits apply immediately across every page and component, and a batch of operations is applied all at once or not at all.

Deleting a theme token that is in use is refused unless the request names a replacement token or detaches it. A replacement keeps every reference attached. Detaching replaces each reference in your designs with the token’s value in the default theme, and those references stay detached even if you restore the token.

Icons, fonts and images

Tool	Description
`search_icons`	Search the project’s icon library
`list_icons`	List uploaded icons
`get_icon_info`	Get an uploaded icon’s markup
`list_fonts`	List Google and custom fonts, with each custom face’s URL
`list_images`	List uploaded images, with each image’s URL
`create_asset_upload`	Get an upload link for icon SVGs, font and image files from your machine
`add_icons`	Add uploaded SVGs to the icon library
`add_fonts`	Add uploaded font files as custom font families
`add_images`	Add uploaded images (PNG, JPEG, GIF, WebP, AVIF, SVG; up to 10 MB)
`delete_icons`	Delete uploaded icons
`delete_fonts`	Delete custom fonts, switching every use to a replacement font
`delete_images`	Delete images, turning each reference into a plain image URL

The agent uploads files with curl, so importing icons, fonts and images needs an agent that can run commands, like Claude Code, Codex, Cursor, or an agent in Subframe’s Agent chat — the upload link accepts files for 10 minutes, and uploaded files can be added with add_icons / add_fonts / add_images for about a day. A same-name icon upload replaces the earlier one everywhere it’s used; a font family named like a Google font is rejected. add_images always adds a new image and never replaces one. Reference an image with <img src="{url}"> in design code or edit_page, using the URL from add_images or list_images.

Motion library

Tool	Description
`search_motion_examples`	Search the motion library by name, intent, or a description of an effect
`get_motion_example`	Get an example’s code, adapt notes, packages, and preview
`get_motion_guidance`	Get Subframe’s motion guidance by topic, like timing or accessibility

These tools are also available without a Subframe account at https://mcp.subframe.com/motion/mcp.

Design references

The design tools can ground a generation in real material — an existing page, component, or snippet in your project, raw code from your codebase, or an image hosted by Subframe. To design from your own mockup, the agent uploads it with add_images and passes its URL. PNG, JPEG and WebP images work. Each reference comes with a note telling the generator how to use it, like “Match this page’s layout and header”. Invalid references are dropped with a warning in the tool result rather than failing the design.

Async jobs

Tool	Description
`wait_for_jobs`	Wait for background design jobs to finish

design_page, design_component, and edit_component run in the background and return a URL you can open right away to watch progress in the editor. Reading a page or component back before its job finishes returns stale content.

Prompting with an MCP link

To reference a page in an external agent, copy its MCP link from the Export tab.

Implement the design at https://app.subframe.com/design/...

To get the latest version of components in your project, run npx @subframe/cli@latest sync to sync components.

Example prompts

Implement a new page from a design

Create a new page using the Subframe page at
https://app.subframe.com/PROJECT_ID/design/DESIGN_ID/edit as reference.

Wire up relevant app logic (API calls, hooks, routing) where applicable.
Keep it consistent with existing project conventions.

Update an existing page with a new design

Update the existing page to match the Subframe design at
https://app.subframe.com/PROJECT_ID/design/DESIGN_ID/edit.

Preserve all existing functionality unless the new design requires a change.

Design a new component

Design a PrivacyToggle component in Subframe. It should have an on/off state,
a label, and a description below the label. Use the same toggle styling as
our existing Toggle component.

Write a design document

Write a design doc for the Toggle component covering when to use it,
accessibility considerations, and a snippet showing all variants.

Delete unused components

List the components in my Subframe project and help me delete any that
aren't being used in any pages.

Add accessibility tags in code

Review the Subframe design at
https://app.subframe.com/PROJECT_ID/design/DESIGN_ID/edit and add proper
accessibility attributes to the existing page.

Add ARIA labels, roles, and descriptions, and proper semantic HTML throughout.

Migrate to Subframe's design system

Migrate the components on the existing page to use Subframe components instead
of the old components.

Get all components in my Subframe project and preserve all existing
functionality unless the new design requires a change.

Fetch a component

Get the Button component from Subframe and use it in this file.

List available components

Show me all components in my Subframe project.

Get the theme

Get my Subframe theme configuration.

Troubleshooting

Authentication failed

The Subframe MCP server uses OAuth. If you’re seeing authentication errors:

Try re-authenticating by reconnecting to the MCP server in your client
Check that you have the correct permissions for the project you’re trying to access
Make sure your browser session is active when authenticating
Confirm your client supports MCP OAuth — Subframe access tokens are not accepted by the MCP server

Agent not calling the MCP server

Make sure your MCP client:

Has MCP support enabled
Has the Subframe server in its MCP configuration
Has been restarted after adding the configuration

Check your client’s logs for MCP-related errors.

Component or page not found

Use list_components, list_pages, list_snippets, or list_canvases to see what’s available.Verify:

The component/page/snippet exists in your Subframe project
The name or URL matches exactly
You have access to the project

Background job seems stuck

design_page, design_component, and edit_component run as background jobs. Check wait_for_jobs with the jobId returned by the design tool — it reports running, done, error, or not_found. The URL is live throughout, so opening it in the editor shows real-time progress.If a job stops reporting progress for ~10 minutes, the server treats it as stalled (worker died, request timed out) and reports it as error so polling never hangs — its summary explains that the result could not be verified. Open the URL to see whether anything was actually generated; the chat panel surfaces any errors from the agent.

Connection errors

If the MCP server is unreachable:

Check your internet connection
Verify the URL is https://mcp.subframe.com/mcp
Reach out to the Subframe team for support

Design

Browser

Agent

Building from scratch

Admin and billing

Installing the MCP server and Agent skills

Using Agent skills

Keeping Agent skills up to date

Using the MCP server

Opening designs in chat

Available tools

Discovery

Pages

Components

Snippets

Canvases

Organizing

Comments

Exporting images

Prototypes

Design documents

Theme

Icons, fonts and images

Motion library

Design references

Async jobs

Prompting with an MCP link

Example prompts

Troubleshooting

​Installing the MCP server and Agent skills

​Using Agent skills

​Keeping Agent skills up to date

​Using the MCP server

​Opening designs in chat

​Available tools

​Discovery

​Pages

​Components

​Snippets

​Canvases

​Organizing

​Comments

​Exporting images

​Prototypes

​Design documents

​Theme

​Icons, fonts and images

​Motion library

​Design references

​Async jobs

​Prompting with an MCP link

​Example prompts

​Troubleshooting

Installing the MCP server and Agent skills

Using Agent skills

Keeping Agent skills up to date

Using the MCP server

Opening designs in chat

Available tools

Discovery

Pages

Components

Snippets

Canvases

Organizing

Comments

Exporting images

Prototypes

Design documents

Theme

Icons, fonts and images

Motion library

Design references

Async jobs

Prompting with an MCP link

Example prompts

Troubleshooting
